Olympia UDM-100W12-UVC-DL Linear UVC LED Strip PASSED UL 2043 Plenum Rating

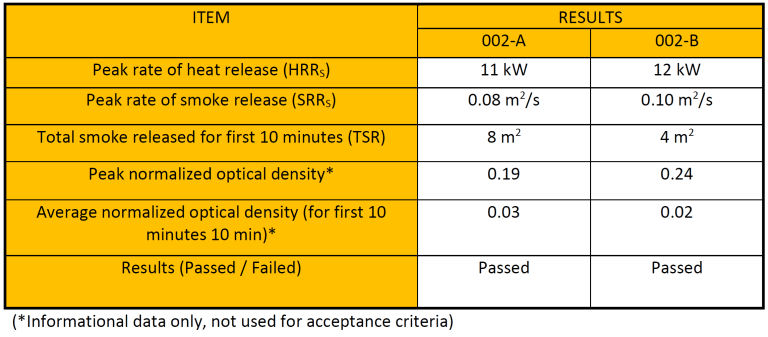

Below are the Acceptance Criteria:

1. 1. The peak rate of heat release (HRRs) measured during each test shall be 100 kilowatts or less. The result is 11KW & 12KW (about one-tenth the allowed HRR)
2. 2. The peak smoke release rate measured during each test shall be 0.21 m2/s or less, SRRs. The result is 0.08 & 0.10 m2/s (less than half the allowed SRR)

3. The total smoke release (10-minute test duration) shall be 75 m2 or less, TSR. The result is 4 & 8 m2  (about one-tenth the allowed TSR)

 Overall the results show OLYMPIA’s Linear UVC LED Strip is very safe for operation in a sealed plenum even under extreme conditions.
